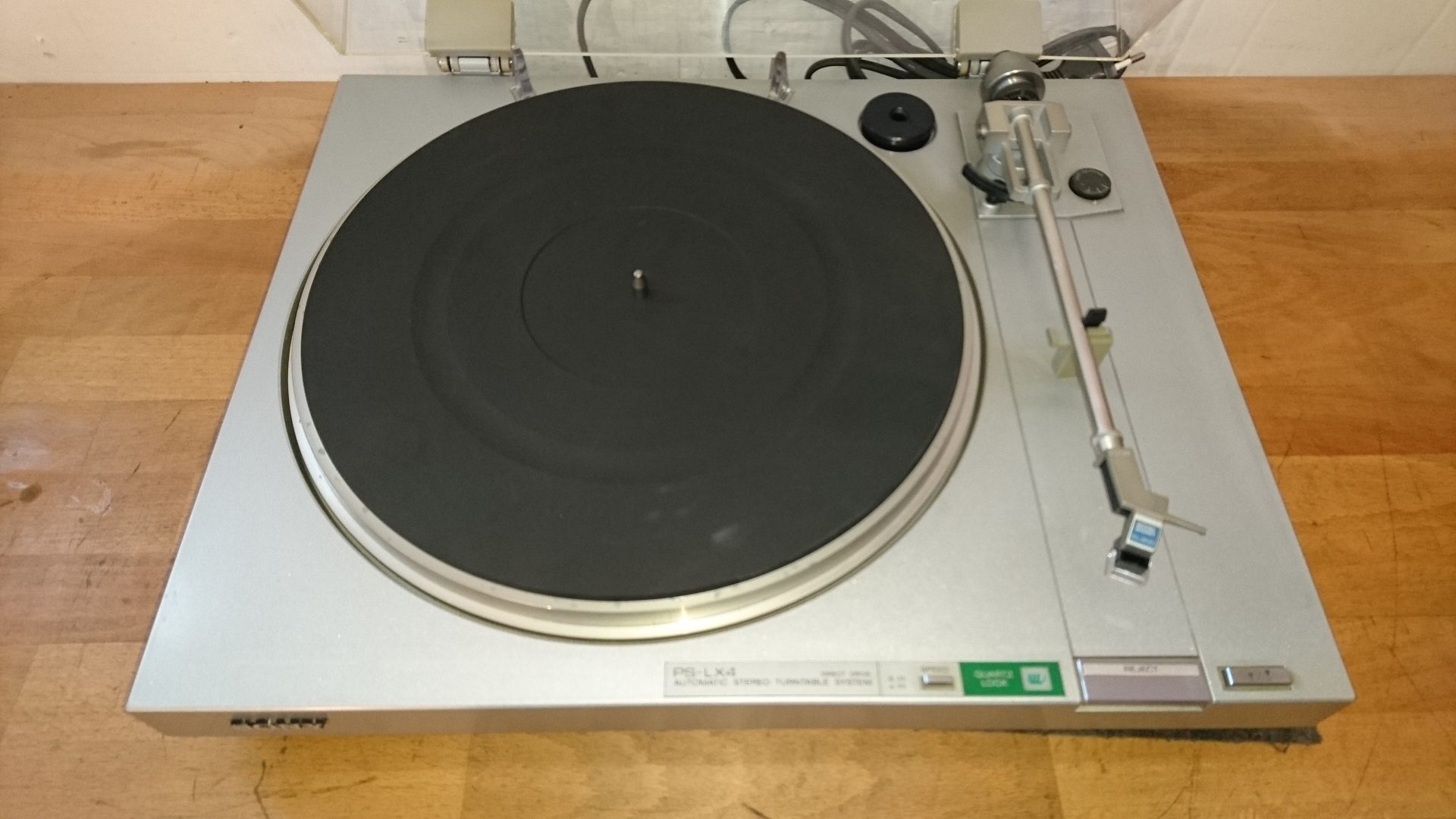

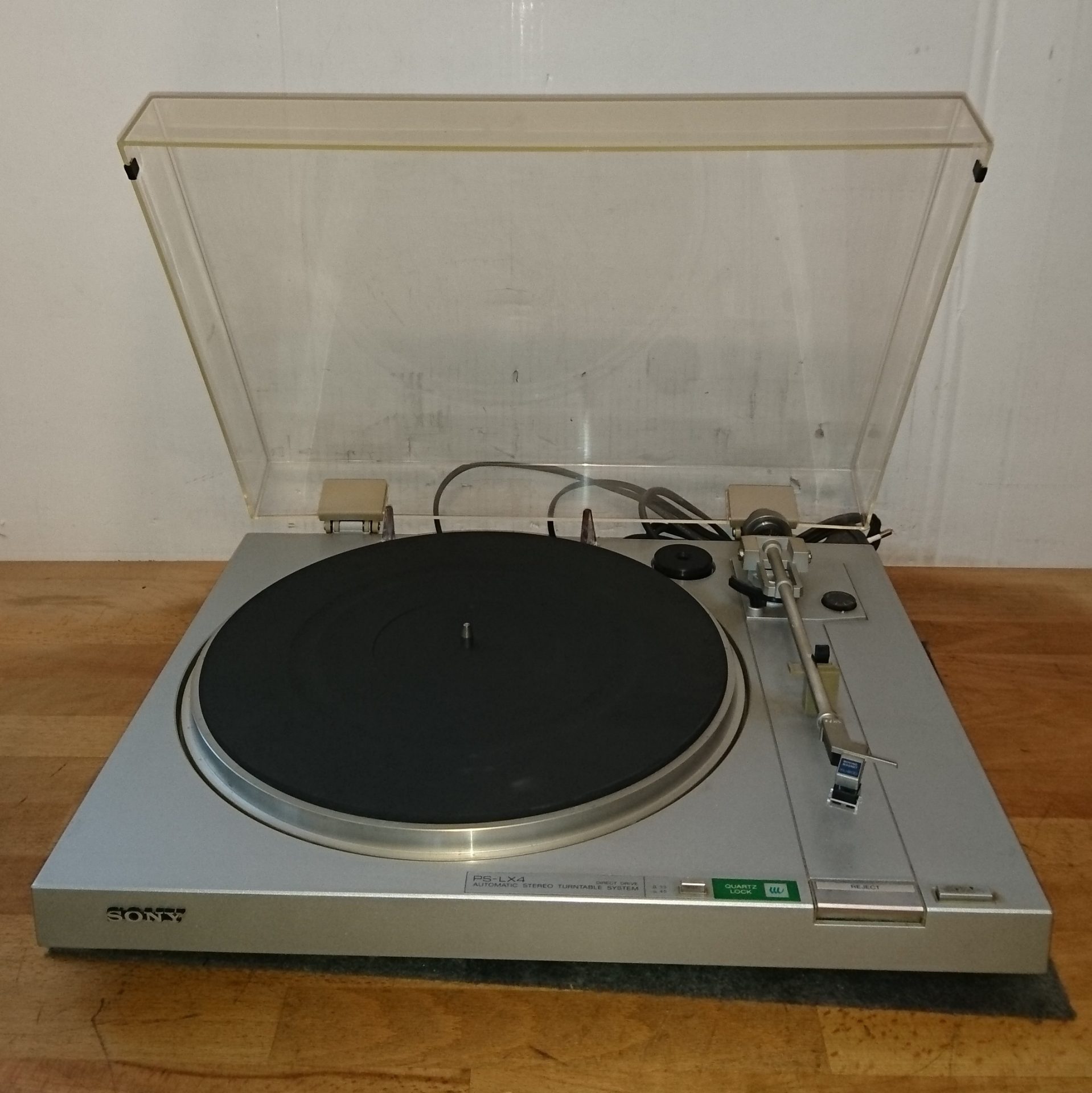

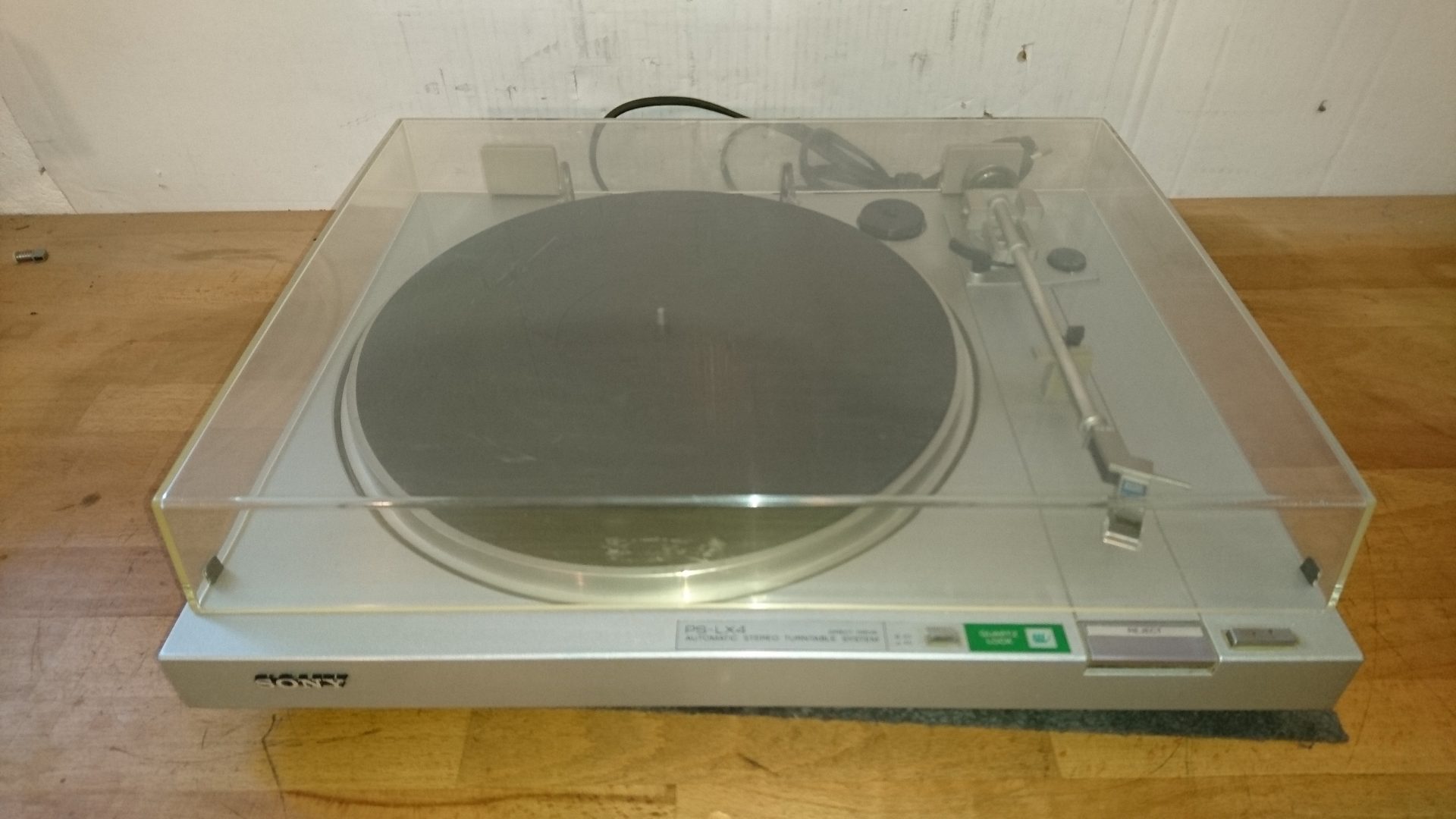

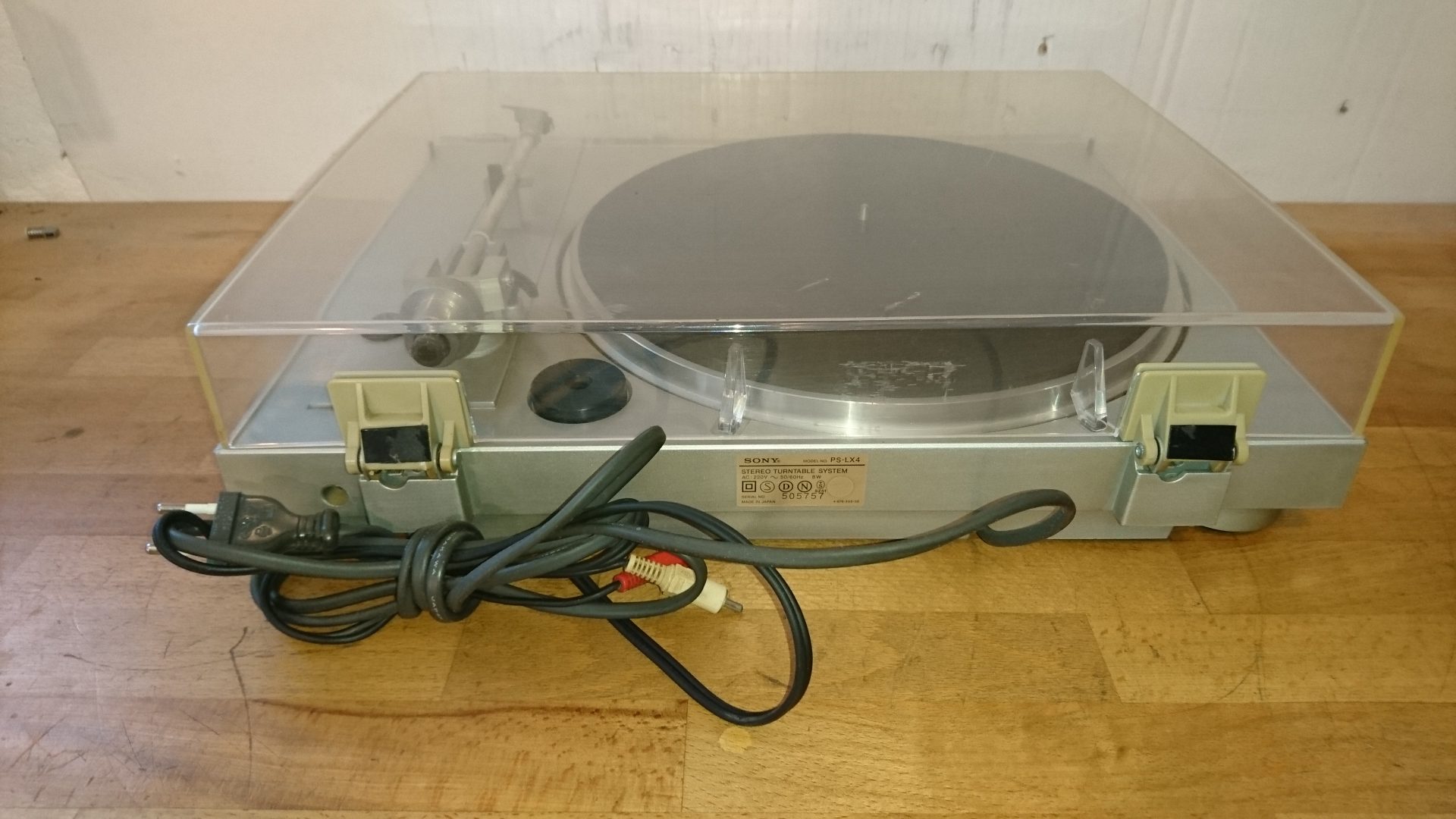

Sony PS-LX4

Platter Weight: 1,1 kg (2lb 7 oz)

Motor: Linear torque BSL (Brushless and slotless) motor

Drive System: Direct-drive

Control System: Magnedisc servo, and Quartz lock control system

Speeds: 33-⅓ and 45 rpm

Starting Characteristics: Comes to nominal speed within a half revolution (33-⅓ rpm)

Speed Accuracy: >0,003%

Wow and Flutter: 0,025% (WRMS) ±0,04% (DIN-45507)

FG Direct Measurement: 0,02%

Signal-to-Noise Ratio: 78 dB (DIN-B)

Load Characteristics: 0,05% up to 150 g stylus force (at lead-in groove of a record)

Tonearm

Type: Straight Statically balanced

Pivot-to-stylus length: 216,5 mm (8-5/8″)

Overhang: 16,5 mm

Tracking Error: +3°00′; -1°00′

Effective Mass (without cartridge): 8,98 g

Stylus Force Adjustment Range: 0 – 3 g

General Section

Power Consumption: 8 W

Dimensions (W x H x D): 430 x 105 x 355 mm (17″ x 4-1/4″ x 14″)

Weight: approx 6,3 kg (13 lbs 14 oz)
