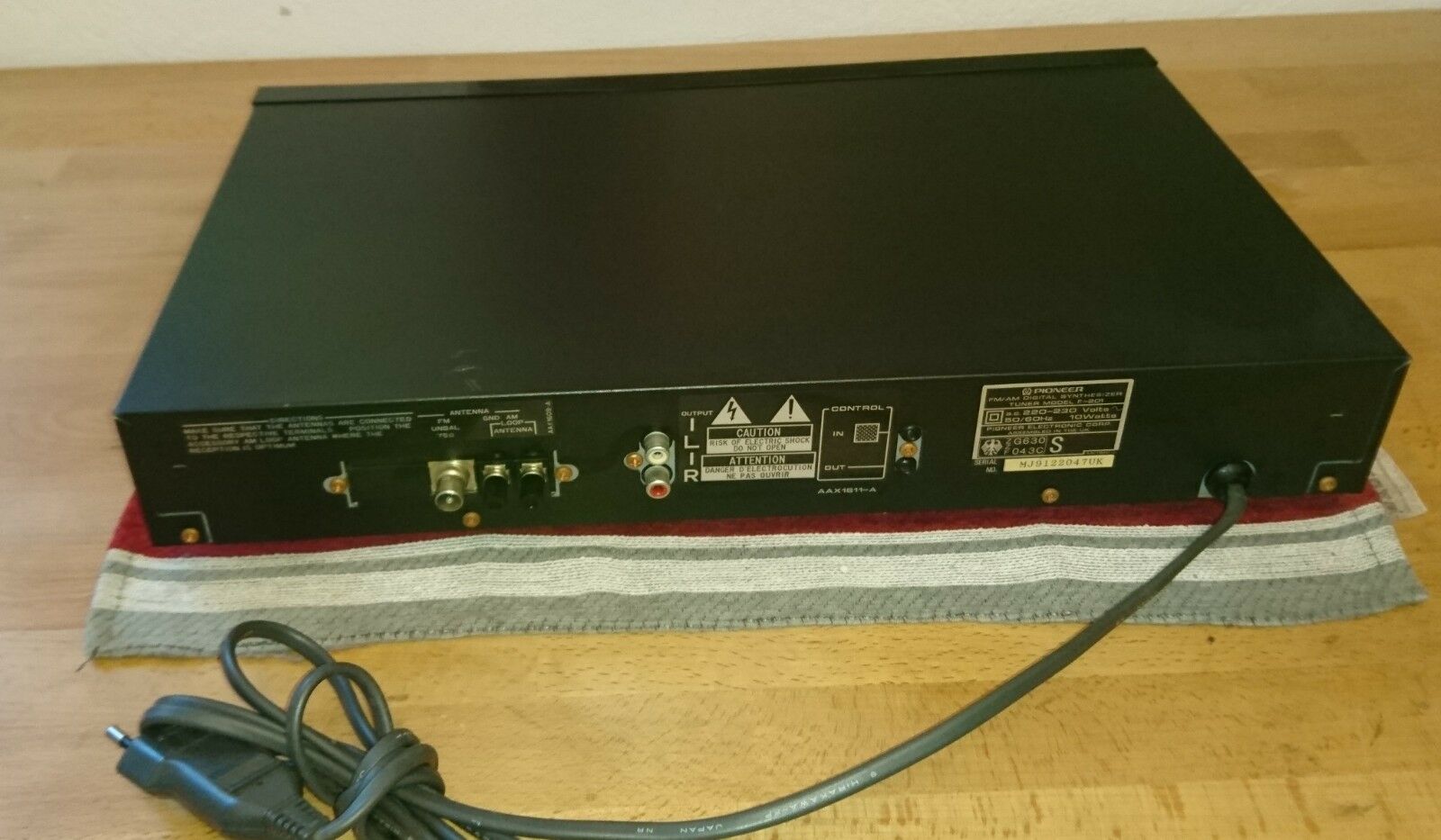

Pioneer F-201

Marke: Pioneer
Anzeige: Digital
Modell: F-201
Technische Daten:

FM tuner section
Frequency Range: (HL) 87.5 MHz to 108 MHz
(Step 50 kHz or 100 kHz)
Usable Sensitivity
NORMAL Mono: 13.2 dBf, IHF(1.3 µ V / 75 W)
50 dB Quieting Sensitivity
NORMAL Mono: 20.2 dBf, IHF (2.8 µĘV / 75 W)
Stereo: 36.2 dBf, IHF (17.7 µĘV / 75 W)
Signal-to-Noise Ratio Mono: 76 dB (at 85 dBf)
Distortion Stereo: 0.5 % (1 kHz)
Alternate Channel Selectivity 70 dB (±400 kHz)
Stereo Separation 40 dB (1 kHz)
Frequency Response ±1 dB (30 Hz to 15 kHz)
Image Response Ratio 40 dB
IF Response Ratio 90 dB
Antenna Input 75 W unbalanced
AM tuner section
(HL) 531 kHz to 1,602 kHz (Step 9 kHz)
(SDB) 531 kHz to 1,602 kHz (Step 9 kHz)
(SDB) 530 kHz to 1,700 kHz (Step 10 kHz)
Sensitivity (IHF, Loop antenna)350 µĘV / m
Selectivity 33 dB(±9 kHz)
Signal-to-Noise Ratio 51 dB
Image Response Ratio 35 dB
IF Response Ratio 51 dB
Antenna Loop Antenna
Audio section
Output (Level/Impedance)
FM (100 % MOD) 668 mV / 1k W
AM (30 % MOD)150 mV / 1k W
Power Requirements(HL) AC 220-230 Volts~
50 / 60 Hz
(SDB) AC 110/120-127/220/240 V
(switchable), 50 / 60 Hz
Power Consumption 10 W
Power Consumption in standby mode 1 W
Dimensions 420 (W) x 78 (H) x 287 (D) mm
