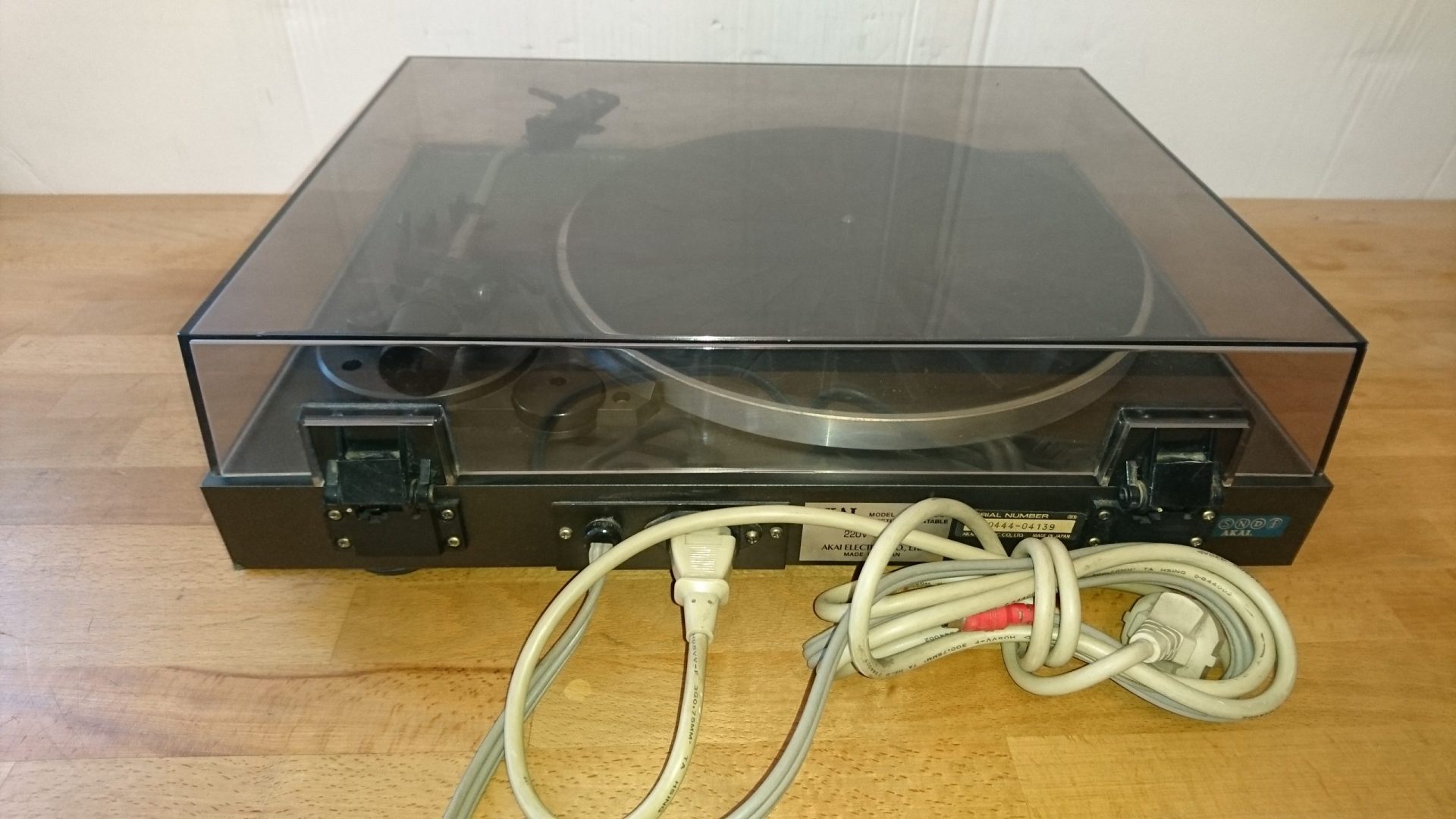

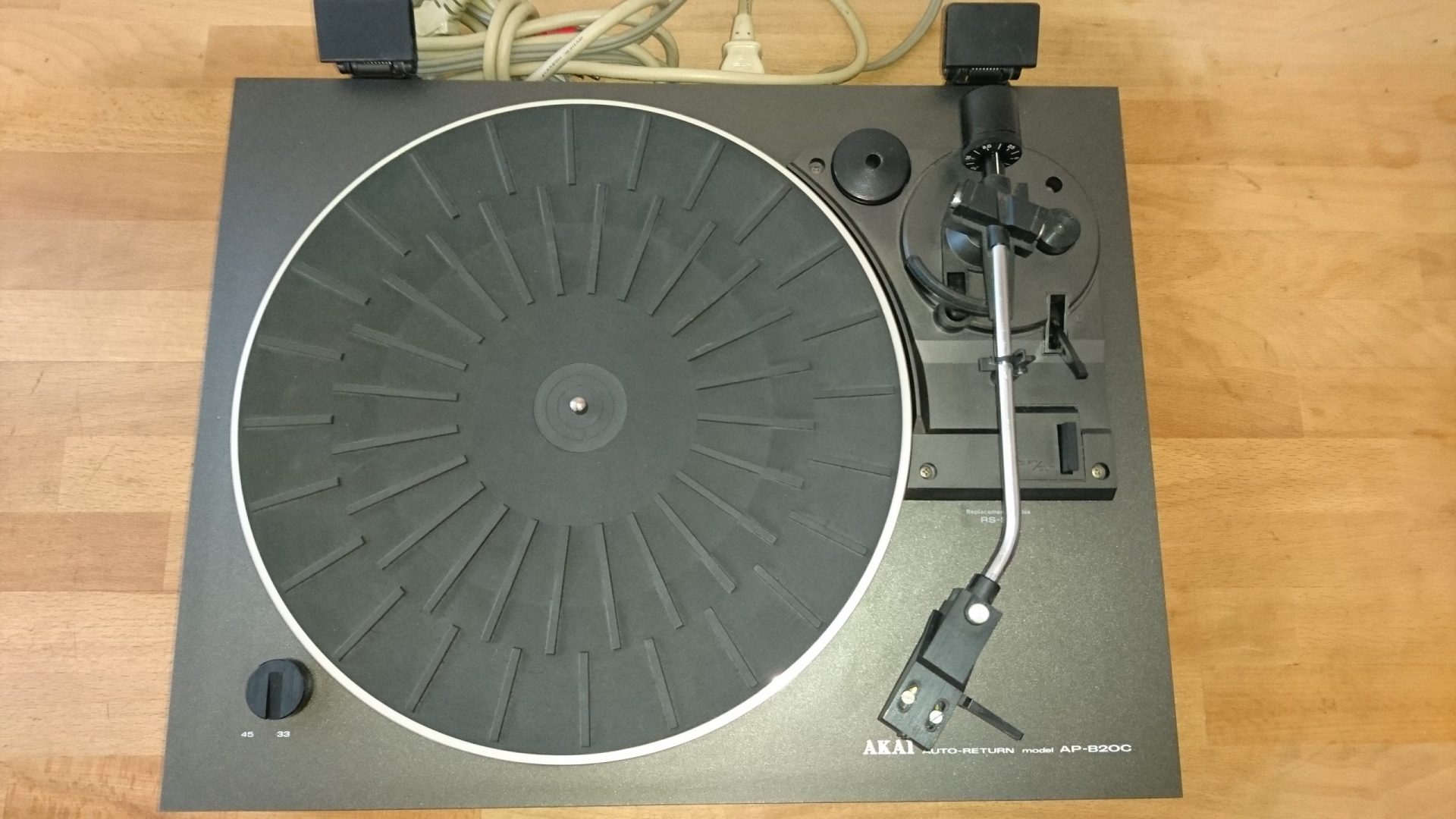

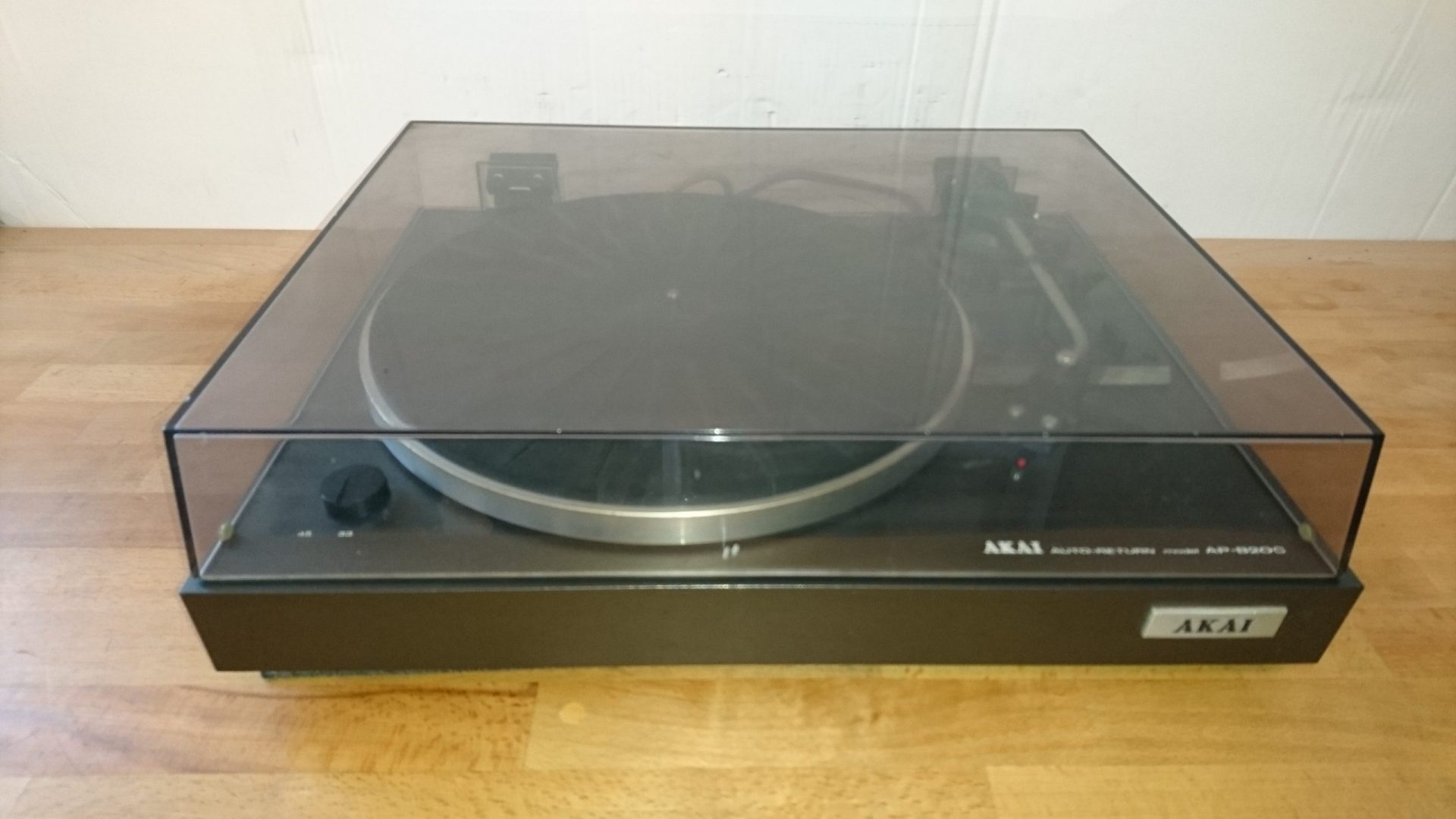

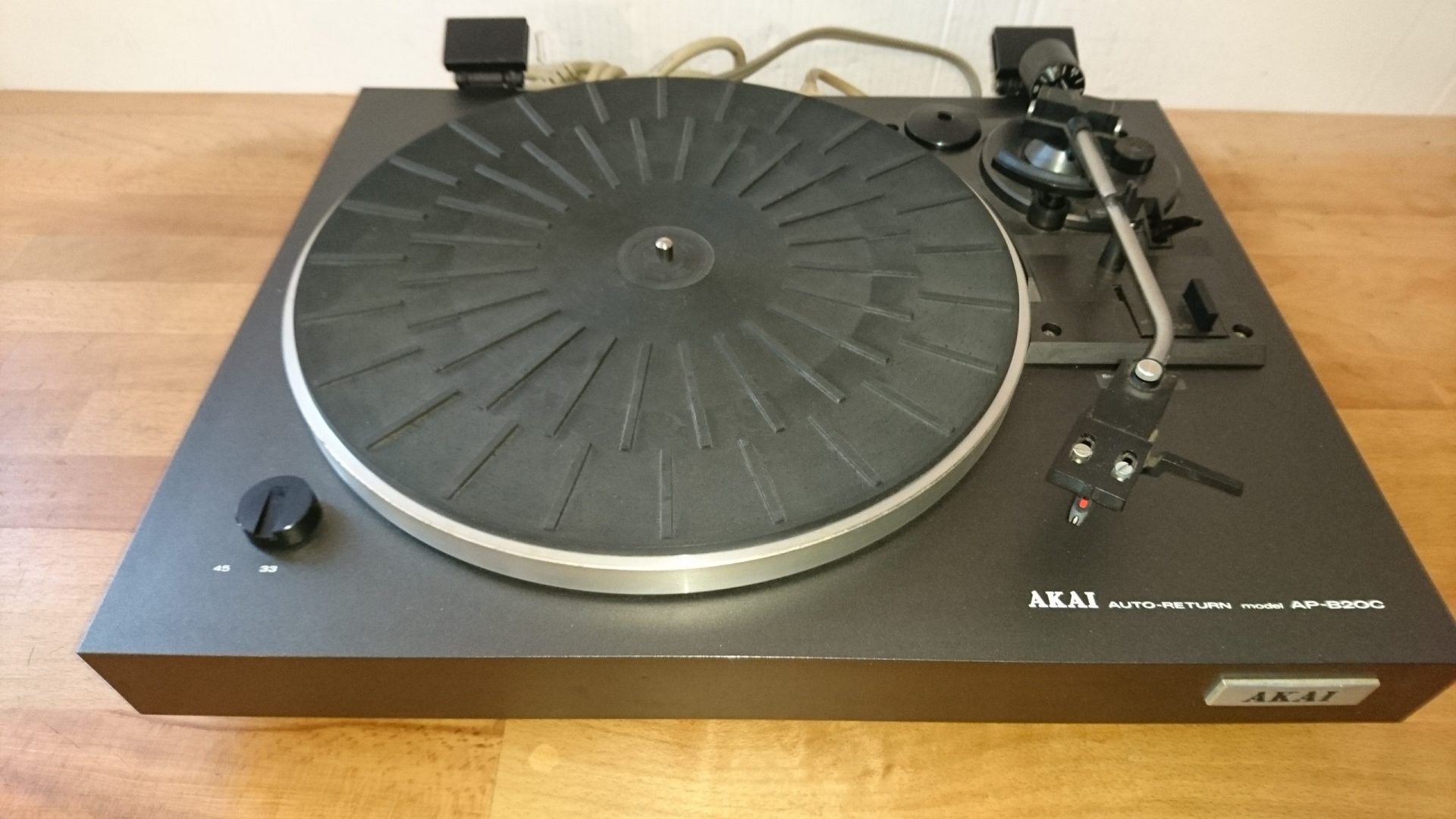

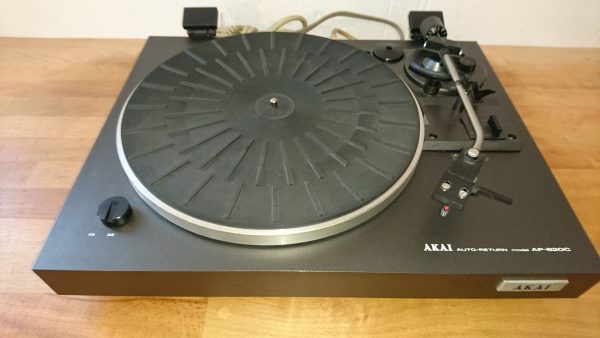

Akai AP-B20C Grau

Specifications:
Turntable: 300 mm Aluminum alloy die cast
Drive System and Mechanism:  Belt-Drive, Semi-automatic
Motor:  4-pole synchronous motor
Speed and Pitch Control:  33 ⅓ and 45 rpm  ±5%
Wow and Flutter:  0.05% (DIN)
Rumble:  65 dB (DIN-B)
Tone-arm: Static balanced type with inside force canceller
Effective Arm Length:  220 mm
Stylus Pressure Adjustment Range: 0 to 3 grams
Applicable Cartridge Weight:  4 to 9 grams
Arm Lifter:  oil damped
Overhang:  15 mm
Offset Angle:  22°30′
Horizontal Tracking Error Angle:  +3° 5′
Shell Weight:  6.5 grams
Cartridge:  Dual Magnet  type
Output Voltage:  5 mV (DIN 45541)
Channel Separation:  More than 20 dB (DIN 45541)
Optimal Stylus Pressure:  2 grams
Static Vertical Compliance:  18 x 10¯⁶ cm/dyn
Static Horizontal Compliance:  18 x 10¯⁶ cm/dyn
Power Requirements:  110-120 / 220-240 V, 50/60 Hz
Dimensions (W x H x D):  440 x 135 x 355 mm ( 17.3 x 5.3 x 14 inch)
Weight:  5.9 kg (13lbs)

Tonabnehmer / pick-up

MM System von Ortofon mit guter Nadel
